Stainless Steel Tube

Stainless Steel Tube
  • Tube and Pipe-001

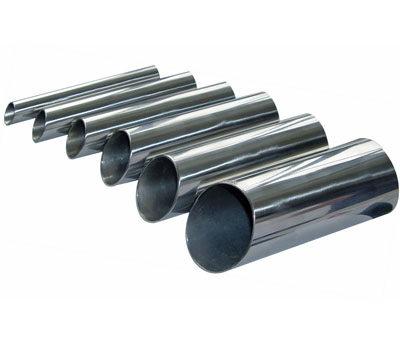

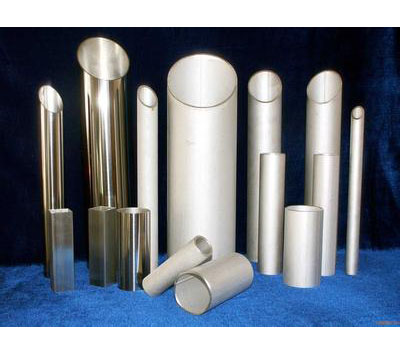

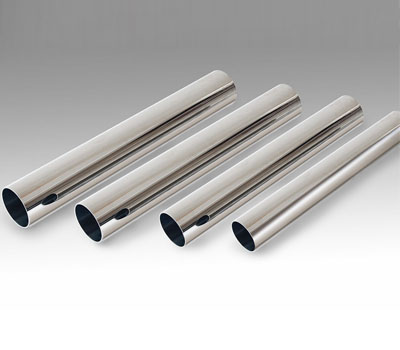

  • stainless steel tube and tubings is the star product of BIG.The tubes are usually applied in motor,construction, oil, medicine, food, paper, machinery, chemicals, food containers and other industries. We supply the tubes with strict tolerance and beautiful surface.

Stainless steel tube and tubing is the star product. exsteel Industry Group cooperate with Toyota, Germany car industry widely on stainless steel tubes.Tolerance of 0.05mm can be achieved!

Materials:

300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,

200series:201,202,202cu,204;

400series:409,409L,410,420,430,431,440;

Others:2205,2507,2906,330,660,630,631,17-4ph,17-7 ph,904L,etc

Size:

Outer diameter: 6 to 720mm, 1/8 to 36 inches

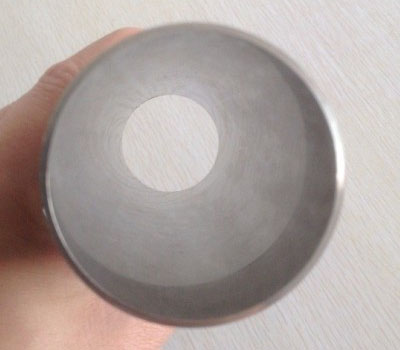

Wall Thickness: 0.89 to 60mm

Length: 1~12 meters or customized

Types:

Seamless&Welded

Production process:

cold drawn and precision rolling





Applications:

seawater environment, petrochemical, fertilizer, oil refining, oil and natural gas, light/food, paper pulp and making paper, energy and environmental-protection industry

Nominal pipe Size(NPS) Outside Diameter Nominal Wall Tnickness
SCH 5S SCH10S SCH20 SCH30 SCH40 STD SCH80 XS SCH160 XXS
8 1/4 13.7 0.54 - 1.65 - 1.85 2.24 2.24 3.02 3.02 - -
10 3/8 17.1 0.675 - 1.65 - 1.85 2.31 2.31 3.20 3.02 - -
15 1/2 21.3 0.84 1.65 2.11 - 2.41 2.77 2.77 3.73 3.73 4.78 7.47
20 3/4 26.7 1.05 1.65 2.11 - 2.41 2.87 2.87 3.91 3.91 5.56 7.82
25 1 33.4 1.32 1.65 2.77 - 2.90 3.38 3.38 4.55 4.55 6.35 9.09
32 1.1/4 42.2 1.66 1.65 2.77 - 2.97 3.56 3.56 4.85 4.85 6.35 9.70
40 1.1/2 48.3 1.90 1.65 2.77 - 3.18 3.68 3.68 5.08 5.08 7.14 10.15
50 2 63.3 2.38 1.65 2.77 - 3.18 3.91 3.91 5.54 5.54 8.74 11.07
65 2.1/2 73.0 2.88 2.11 3.05 - 4.78 5.16 5.16 7.01 7.01 9.53 14.02
80 3 88.9 3.50 2.11 3.05 - 4.78 5.49 5.49 7.62 7.62 11.13 15.24
90 3.1/2 101.6 4.00 2.11 3.05 - 4.78 5.74 5.74 8.08 8.08 - -
100 4 114.3 4.50 2.11 3.05 - 4.78 6.02 6.02 8.56 8.56 13.49 17.12
125 5 141.3 5.56 2.77 3.40 - - 6.55 6.55 9.53 9.53 15.88 19.05
150 6 168.3 6.62 2.77 3.40 - - 7.11 7.11 10.97 10.97 18.26 21.96
200 8 219.1 8.62 2.77 3.76 6.35 7.04 8.18 8.18 12.70 12.70 23.01 22.23
250 10 273.0 10.75 3.40 4.19 6.35 7.80 9.27 9.27 15.0 12.70 28.58 25.40
300 12 323.8 12.75 3.96 4.57 6.35 8.38 10.13 9.53 17.48 12.70 33.32 25.40
350 14 355.6 14 3.96 4.78 7.92 9.53 11.13 9.53 19.05 12.70 35.71 -
400 16 406.4 16 4.19 4.78 7.92 9.53 12.70 9.53 21.44 12.70 40.49 -
450 18 457 18 4.19 4.78 7.92 11.13 14.27 9.53 23.83 12.70 45.24 -
500 10 508 20 4.78 5.54 9.53 12.70 15.09 9.53 26.19 12.70 50.01 -
550 22 559 22 4.78 5.54 9.53 12.70 - 9.53 28.58 12.70 53.98 -
600 24 610 24 5.54 6.35 9.53 14.27 17.48 9.53 30.96 12.70 59.54 -
650 *26 660 26 - - - - - 9.53 - 12.70 - -
700 *28 711 28 - - - - - 9.53 - 12.70 - -
750 *30 762 30   - - - - 9.53 - 12.70 - -
800 *32 813 32 - - - - - 9.53 - 12.70 - -
850 *34 864 34 - - - - - 9.53 - 12.70 - -
900 *36 914 36 - - - - - 9.53 - 12.70 - -
950 *38 965 38 - - - - - 9.53 - 12.70 - -
1000 *40 1016 40 - - - - - 9.53 - 12.70 - -
1050 *42 1067 42 - - - - - 9.53 - 12.70 - -
1100 *44 1118 44 - - - - - 9.53 - 12.70   -
1150 *46 1168 46 - - - - - 9.53 - 12.70 - -
1200 *48 1219 48 - - - - - 9.53 - 12.70 - -

Packing:

plastic poly-bag, wooden case

All our products are packed, stored, transported according to the international regulation.

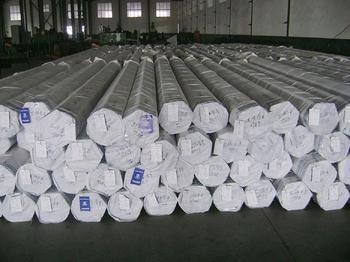

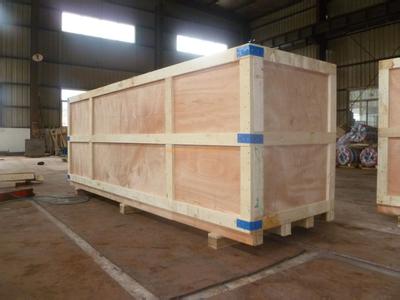

The tubes are  wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
