Stainless Steel Elbow

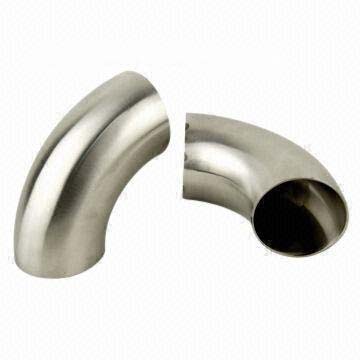

- Stainless Steel Elbow-004
- Butt welded elbows are widely used in heavy industries. An elbow is a type of pipe fitting which could link two pipes together.
Butt welded elbows are widely used in heavy industries. An elbow is a type of pipe fitting which could link two pipes together. With experience in manufacturing stainless steel fittings more than a decade, our products and services are guaranteed.
1. Material: 304, 304L, 321, 316, 316L, etc.
2. Standard: ASME, MSS, HG, DIN, JIS, GB
3. Type: 90 degree Long Radius, 90 degree Short Radius, 45 degree Long Radius, 180 degree Return Band
We offer Sanitary Fittings, Stainless Steel Sanitary Fittings, and Stainless Steel Tube Fittings that are manufactured using optimum quality stainless steel. Our wide array of sanitary stainless steel elbow is known among the customer's due to its tensile strength. These Steel Tube Fittings in various grades and finishes as per the needs.
Specification of Stainless Steel Butt Welded Elbow:
Specification | Type | Data |
Size | 90 degree Long/Short Radius | Seamless 1/2�-20�(DN15-DN500) |
180 degree Return Band | Seamless 1/2�-4�(DN15-DN100) | |
Wall Thickness | 90 degree Long/Short Radius | SCH5S-SCH160 |
180 degree Return Band | SCH5S-SCH80S | |
Material | 304, 304L, 321, 316, 316L, etc. | |
Standard | GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635 | |
HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313 | ||
Types of Stainless Steel Butt Welded Elbow:
Technical Parameter:
Butt-welding Elbows ANSI B16.9 | ||||
Nominal Diameter | Outside Diameter/mm | Center to End/mm | ||
45 degree Elbow | 90 degree Elbow | |||
DN | OD | Long Radius | Long Radius | Short Radius |
1/2 | 21.3 | 15.7 | 38.1 | - |
3/4 | 26.7 | 19.1 | 38.1 | - |
1 | 33.4 | 22.4 | 38.1 | 25.4 |
1 1/4 | 42.2 | 25.4 | 47.8 | 31.8 |
1 1/2 | 48.3 | 28.4 | 57.2 | 38.1 |
2 | 60.3 | 35.1 | 76.2 | 50.8 |
2 1/2 | 73 | 44.5 | 95.3 | 63.5 |
3 | 88.9 | 50.8 | 114.3 | 76.2 |
3 1/2 | 101.6 | 57.2 | 133.4 | 88.9 |
4 | 114.3 | 63.5 | 152.4 | 101.6 |
5 | 141.3 | 79.2 | 190.5 | 127 |
5 | 168.3 | 95.3 | 228.6 | 152.4 |
8 | 219.1 | 127 | 304.8 | 203.2 |
10 | 273.1 | 158.8 | 381 | 254 |
12 | 323.9 | 190.5 | 457.2 | 304.8 |
14 | 355.6 | 222.3 | 533.4 | 355.6 |
16 | 406.4 | 254 | 609.6 | 406.4 |
18 | 457.2 | 285.8 | 685.8 | 457.2 |
20 | 508 | 317.5 | 762 | 508 |
22 | 558.8 | 342.9 | 838.2 | 558.8 |
24 | 609.6 | 381 | 914.4 | 609.6 |
Application of Stainless Steel Butt Welded Elbow: Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, MetallurgyPackage of Stainless Steel
Butt Welded Elbow: Wooden Bracket or according to your request
Packing:
All exsteel's products are packed, stored, transported according to the international regulation. The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
