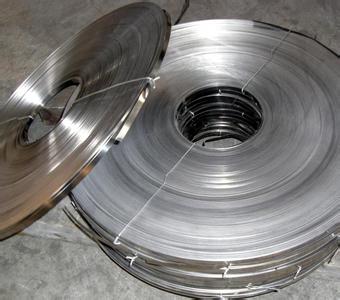

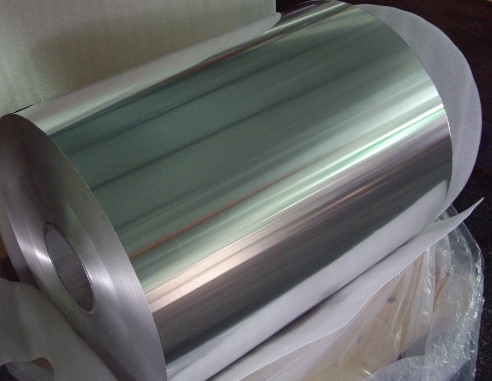

301 Stainless Steel Strip
- Stainless Steel Strip-003
- Stainless steel strip 301 (AISI 301,1.4310)is one of the featured products of exsteel Industry Group.
- We supply high quality precision strip with thickness 0.03 mm-3.0 mm;width 2 mm-600 mm;Hardness HV 145- HV 620 in condition Annealed,1/2 H,3/4 H,F H,EH,SHE.(tensile strength 205 MPA 1800 MPA).
Equipped with the most advanced Rolling Mills, Vertical Bright Annealing Lines, Degreasing Lines, Precision Slitter, Shearing Lines and Stretch Bend Leveling Line, exsteel Industry Group is capable to produce high precision quality metal.
Materials:
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,
200series:201,202,202cu,204;
400series:409,409L,410,420,430,431,440;
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7 ph,904L,etc
1. Thickness: 0.005mm to 3mm
2. Width: 2mm-600mm
3. Length: min 1m
4. Surface finish: 2B, BA, 8K, 6K, etc
5. Manufacture technology: cold drawn/cold rolled/hot rolled
Applications:
Chemical Insulation Banding
Construction / Commercial Insulation Banding
Insulation Banding - Power Generation
Food & Beverage Insulation Banding
Oil & Gas Pipeline Insulation Banding - Onshore
Oil & Gas Insulation Banding Refineries
Insulation Banding Process Industry

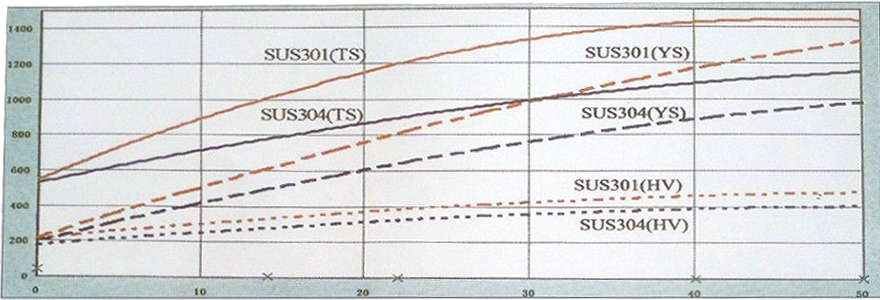

Physical performance:
| 钢种 | 调质记号 | 机械性能（调质轧制状态） | |||
| 屈服强度（YS） | 抗拉强度（TS） | 延伸率（EL） | 硬度 | ||
| Mpa | Mpa | ％ | HV | ||
| SUS301 | ANN | 205min | 520min | ≥40 | ≤200 |
| 1/2H | ≥510 | ≥930 | ≥9 | ≥310 | |
| 3/4H | ≥745 | ≥1130 | ≥3 | ≥370 | |
| FH | ≥1030 | ≥1320 | ≥3 | ≥430 | |
| EH | ≥1430 | ≥1570 | - | ≥490 | |
| SHE | ≥1650 | ≥1740 | - | ≥530 | |
| SUS304 | ANN | 205min | ≥520min | ≥40 | ≤200 |
| 1/2H | ≥470 | ≥780 | ≥6 | ≥250 | |
| 3/4H | ≥665 | ≥930 | ≥3 | ≥310 | |
| FH | ≥880 | ≥1130 | - | ≥370 | |

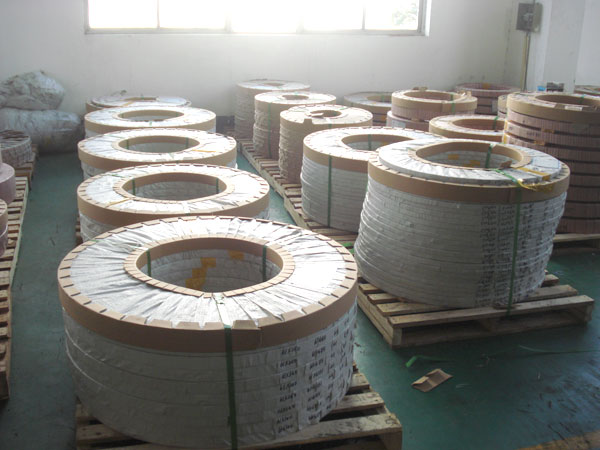

Packing:
All exsteel's products are packed, stored, transported according to the international regulation.

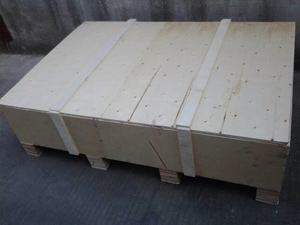

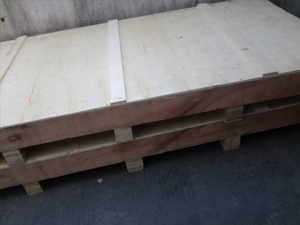

The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
